openstack-swift部署指南

实验拓扑图



控制节点

swift基本配置

在keystone上为swift创建用户名和密码

[root@controller ~(admin)]# openstack user create --password redhat swift

[root@controller ~(admin)]# openstack role add --user swift  --project service admin

在keystone上为swift创建服务

[root@controller ~(admin)]# openstack service create --name swift object-store

在keystone上为swift创建endpoint

[root@controller ~(admin)]# openstack endpoint create --region RegionOne \

>  object-store public http://controller:8080/v1/AUTH_%\(tenant_id\)s

[root@controller ~(admin)]# openstack endpoint create --region RegionOne \

>  object-store internal http://controller:8080/v1/AUTH_%\(tenant_id\)s

[root@controller ~(admin)]# openstack endpoint create --region RegionOne \

>  object-store admin http://controller:8080/v1

在控制节点上安装swift软件包

[root@controller ~(admin)]# yum install openstack-swift-proxy python-swiftclient \

>  python-keystoneclient python-keystonemiddleware \

>  memcached -y

已加载插件：fastestmirror, langpacks

Repository rdo-trunk-pike-tested is listed more than once in the configuration

Loading mirror speeds from cached hostfile

 * epel: mirrors.sohu.com

....

作为依赖被安装:

  liberasurecode.x86_64 0:1.5.0-1.el7

  python-ceilometermiddleware.noarch 0:1.1.0-1.el7

  python-dns.noarch 0:1.12.0-4.20150617git465785f.el7

  python-pyeclib.x86_64 0:1.5.0-1.el7

  python-swift.noarch 0:2.15.1-1.el7

完毕！

修改配置文件

修改/etc/swift/proxy-server.conf

在[DEFAULT]下添加

swift_dir = /etc/swift

修改[filter:authtoken]下面的内容为

[filter:authtoken]

paste.filter_factory = keystonemiddleware.auth_token:filter_factory

auth_uri = http://controller:5000

auth_url = http://controller:35357

memcached_servers = controller:11211

auth_type = password

project_domain_name = default

user_domain_name = default

project_name = service

username = swift

password = redhat

delay_auth_decision = True

signing_dir = /tmp/keystone-signing-swift



在[filter:authtoken]前面增加如下内容

[filter:keystoneauth]

use = egg:swift#keystoneauth

operator_roles = admin,user



存储节点

关闭防火墙、关闭selinux：

[root@swift-storageX ~]# setenforce 0

[root@swift-storageX ~]# sed -i '/SELINUX=/cSELINUX=disabled' /etc/sysconfig/selinux

[root@swift-storageX ~]#

[root@swift-storageX ~]# firewall-cmd --set-default-zone=trusted

success

[root@swift-storageX ~]#

设置/etc/hosts

[root@swift-storageX ~]# tail -2 /etc/hosts

192.168.26.201 controller.rhce.cc controller

192.168.26.202 swift-storage1.rhce.cc swift-storage1

192.168.26.203 swift-storage2.rhce.cc swift-storage2

[root@swift-storageX ~]#

安装必要的软件包

[root@swfit-storageX ~]# yum install rsync openstack-swift-account \

>  openstack-swift-container openstack-swift-object -y

已加载插件：fastestmirror

base                                                      | 3.6 kB  00:00:00

extras                                                     | 3.4 kB  00:00:00

updates                                                   | 3.4 kB  00:00:00

Loading mirror speeds from cached hostfile

....

作为依赖被安装:

..

 python2-six.noarch 0:1.10.0-9.el7

完毕！



准备需要的分区

[root@swfit-storageX ~]# pvcreate /dev/sdb

  Physical volume "/dev/sdb" successfully created.

[root@swfit-storageX ~]# vgcreate vg0 /dev/sdb

  Volume group "vg0" successfully created

[root@swfit-storageX ~]#

[root@swfit-storageX ~]# lvcreate -L 2G -n lv1 vg0

  Logical volume "lv1" created.

[root@swfit-storageX ~]# lvcreate -L 2G -n lv2 vg0

  Logical volume "lv2" created.

[root@swfit-storageX ~]#

[root@swfit-storageX ~]

[root@swfit-storageX ~]# mkfs.xfs /dev/vg0/lv1

[root@swfit-storageX ~]# mkfs.xfs /dev/vg0/lv2

[root@swift-storageX ~]# mkdir -p /srv/node/lv{1,2}

[root@swfit-storageX ~]# tree /srv/

/srv/

└── node

    ├── lv1

    └── lv2



3 directories, 0 files

[root@swfit-storageX ~]#



修改/etc/fstab

[root@swfit-storageX ~]# tail -2 /etc/fstab

/dev/vg0/lv1 /srv/node/lv1 xfs defaults 0 0

/dev/vg0/lv2 /srv/node/lv2 xfs defaults 0 0

[root@swfit-storageX ~]#

[root@swfit-storageX ~]# mount -a

[root@swfit-storageX ~]# df -hT | tail -2

/dev/mapper/vg0-lv1     xfs       2.0G   33M  2.0G    2% /srv/node/lv1

/dev/mapper/vg0-lv2     xfs       2.0G   33M  2.0G    2% /srv/node/lv2

[root@swfit-storageX ~]#

修改权限

[root@swfit-storageX ~]# chown -R swift.swift /srv/node/

[root@swfit-storageX ~]

修改配置文件

vim /etc/rsyncd.conf，添加如下内容

uid = swift

gid = swift

log file = /var/log/rsyncd.log

pid file = /var/run/rsyncd.pid

address = 192.168.26.X #此处填写存储节点的IP



[account]

max connections = 2

path = /srv/node/

read only = False

lock file = /var/lock/account.lock



[container]

max connections = 2

path = /srv/node/

read only = False

lock file = /var/lock/container.lock



[object]

max connections = 2

path = /srv/node/

read only = False

lock file = /var/lock/object.lock

启动rsyncd并设置开机自动启动

[root@swfit-storageX ~]# systemctl start rsyncd.service

[root@swfit-storageX ~]# systemctl is-active rsyncd.service

active

[root@swfit-storageX ~]

[root@swfit-storageX ~]# systemctl enable rsyncd.service

Created symlink from /etc/systemd/system/multi-user.target.wants/rsyncd.service to /usr/lib/systemd/system/rsyncd.service.

[root@swfit-storageX ~]#

编辑/etc/swift/account-server.conf， 确保

[DEFAULT]后面内容如下:

bind_ip = 192.168.26.X

bind_port = 6202

user = swift

swift_dir = /etc/swift

devices = /srv/node

mount_check = True



[pipeline:main]后面内容如下:

pipeline = healthcheck recon account-serve



添加

[filter:recon]

use = egg:swift#recon

recon_cache_path = /var/cache/swift



[filter:healthcheck]

use = egg:swift#healthcheck



编辑/etc/swift/container-server.conf, 确保

[DEFAULT]后面的内容如下：

bind_ip = 192.168.26.X

bind_port = 6201

user = swift

swift_dir = /etc/swift

devices = /srv/node

mount_check = True



[pipeline:main]后面的内容如下:

pipeline = healthcheck recon container-server



增加

[filter:recon]

use = egg:swift#recon

recon_cache_path = /var/cache/swift



[filter:healthcheck]

use = egg:swift#healthcheck



编辑/etc/swift/object-server.conf，确保

[DEFAULT]后面的内容如下:

bind_ip = 192.168.26.X

bind_port = 6200

user = swift

swift_dir = /etc/swift

devices = /srv/node

mount_check = True

[pipeline:main]后面的内容如下:

pipeline = healthcheck recon  object-server



增加

[filter:recon]

use = egg:swift#recon

recon_cache_path = /var/cache/swift

recon_lock_path = /var/lock



[filter:healthcheck]

use = egg:swift#healthcheck



[root@swfit-storageX ~]# mkdir -p /var/cache/swift

[root@swfit-storageX ~]# chown -R root:swift /var/cache/swift

[root@swfit-storageX ~]# chmod -R 775 /var/cache/swift

[root@swfit-storage ~]#



继续回到控制节点创建ring

创建builder文件

[root@controller ~(admin)]# cd /etc/swift/

[root@controller swift(admin)]# swift-ring-builder account.builder create 12 3 1

[root@controller swift(admin)]# swift-ring-builder container.builder create 12 3 1

[root@controller swift(admin)]# swift-ring-builder object.builder create 12 3 1



创建ring



[root@controller swift(admin)]# swift-ring-builder account.builder add z1-192.168.26.202:6202/lv1 100

WARNING: No region specified for z1-192.168.26.202:6202/lv1. Defaulting to region 1.

Device d0r1z1-192.168.26.202:6202R192.168.26.202:6202/lv1_"" with 100.0 weight got id 0

[root@controller swift(admin)]# swift-ring-builder account.builder add z1-192.168.26.202:6202/lv2 100

WARNING: No region specified for z1-192.168.26.202:6202/lv2. Defaulting to region 1.

Device d1r1z1-192.168.26.202:6202R192.168.26.202:6202/lv2_"" with 100.0 weight got id 1

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder account.builder add z2-192.168.26.203:6202/lv1 100

WARNING: No region specified for z2-192.168.26.203:6202/lv1. Defaulting to region 1.

Device d2r1z2-192.168.26.203:6202R192.168.26.203:6202/lv1_"" with 100.0 weight got id 2

[root@controller swift(admin)]# swift-ring-builder account.builder add z2-192.168.26.203:6202/lv2 100

WARNING: No region specified for z2-192.168.26.203:6202/lv2. Defaulting to region 1.

Device d3r1z2-192.168.26.203:6202R192.168.26.203:6202/lv2_"" with 100.0 weight got id 3

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder container.builder add z1-192.168.26.202:6201/lv1 100

WARNING: No region specified for z1-192.168.26.202:6201/lv1. Defaulting to region 1.

Device d0r1z1-192.168.26.202:6201R192.168.26.202:6201/lv1_"" with 100.0 weight got id 0

[root@controller swift(admin)]# swift-ring-builder container.builder add z1-192.168.26.202:6201/lv2 100

WARNING: No region specified for z1-192.168.26.202:6201/lv2. Defaulting to region 1.

Device d1r1z1-192.168.26.202:6201R192.168.26.202:6201/lv2_"" with 100.0 weight got id 1

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder container.builder add z2-192.168.26.203:6201/lv1 100

WARNING: No region specified for z2-192.168.26.203:6201/lv1. Defaulting to region 1.

Device d2r1z2-192.168.26.203:6201R192.168.26.203:6201/lv1_"" with 100.0 weight got id 2

[root@controller swift(admin)]# swift-ring-builder container.builder add z2-192.168.26.203:6201/lv2 100

WARNING: No region specified for z2-192.168.26.203:6201/lv2. Defaulting to region 1.

Device d3r1z2-192.168.26.203:6201R192.168.26.203:6201/lv2_"" with 100.0 weight got id 3

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder object.builder add z1-192.168.26.202:6200/lv1 100

WARNING: No region specified for z1-192.168.26.202:6200/lv1. Defaulting to region 1.

Device d0r1z1-192.168.26.202:6200R192.168.26.202:6200/lv1_"" with 100.0 weight got id 0

[root@controller swift(admin)]# swift-ring-builder object.builder add z1-192.168.26.202:6200/lv2 100

WARNING: No region specified for z1-192.168.26.202:6200/lv2. Defaulting to region 1.

Device d1r1z1-192.168.26.202:6200R192.168.26.202:6200/lv2_"" with 100.0 weight got id 1

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder object.builder add z2-192.168.26.203:6200/lv1 100

WARNING: No region specified for z2-192.168.26.203:6200/lv1. Defaulting to region 1.

Device d2r1z2-192.168.26.203:6200R192.168.26.203:6200/lv1_"" with 100.0 weight got id 2

[root@controller swift(admin)]# swift-ring-builder object.builder add z2-192.168.26.203:6200/lv2 100

WARNING: No region specified for z2-192.168.26.203:6200/lv2. Defaulting to region 1.

Device d3r1z2-192.168.26.203:6200R192.168.26.203:6200/lv2_"" with 100.0 weight got id 3

[root@controller swift(admin)]#

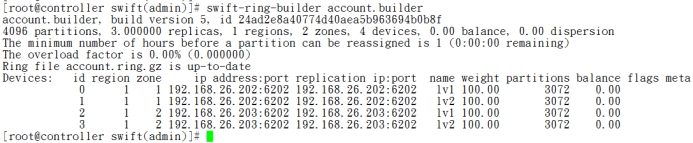

查看内容:

rebalance操作

[root@controller swift(admin)]# swift-ring-builder account.builder rebalance

Reassigned 8192 (200.00%) partitions. Balance is now 0.00.  Dispersion is now 0.00

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder container.builder rebalance

Reassigned 8192 (200.00%) partitions. Balance is now 0.00.  Dispersion is now 0.00

[root@controller swift(admin)]#

[root@controller swift(admin)]# swift-ring-builder object.builder rebalance

Reassigned 8192 (200.00%) partitions. Balance is now 0.00.  Dispersion is now 0.00

[root@controller swift(admin)]#

[root@controller swift(admin)]#



拷贝ring文件到存储节点

[root@controller swift(admin)]# scp *gz swift-storageX:/etc/swift/

root@swift-storage's password:

account.ring.gz                         100%  258   107.0KB/s   00:00

container.ring.gz                        100%  260    88.8KB/s   00:00

object.ring.gz                           100%  256   102.0KB/s   00:00

[root@controller swift(admin)]#



在所有节点同步配置swift.conf

[root@controller swift(admin)]# cat swift.conf

[swift-hash]

swift_hash_path_suffix = f8b53d82d4f66b2833e8

swift_hash_path_prefix = 23b9868bb5ee2b48c80c

[storage-policy:0]

name = Policy-0

default = yes

aliases = yellow, orange

[swift-constraints]

[root@controller swift(admin)]#



其中hash部分用命令

openssl rand -hex 10

生成。

在控制节点和存储节点上启动相关服务

控制节点

[root@controller swift(admin)]# systemctl restart openstack-swift-proxy.service

[root@controller swift(admin)]# systemctl is-active openstack-swift-proxy.service

active

[root@controller swift(admin)]# systemctl enable openstack-swift-proxy.service

Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-swift-proxy.service to /usr/lib/systemd/system/openstack-swift-proxy.service.

[root@controller swift(admin)]#

存储节点

[root@swift-storageX swift]# systemctl start openstack-swift-account-auditor.service openstack-swift-account-replicator.service openstack-swift-account.service openstack-swift-container-auditor.service openstack-swift-container-replicator.service openstack-swift-container-sync.service openstack-swift-container-updater.service openstack-swift-container.service openstack-swift-object-auditor.service openstack-swift-object-replicator.service openstack-swift-object-updater.service openstack-swift-object.service

[root@swift-storage swift]#

[root@swift-storage swift]#

[root@swift-storage swift]# systemctl enable openstack-swift-account-auditor.service openstack-swift-account-replicator.service openstack-swift-account.service openstack-swift-container-auditor.service openstack-swift-container-replicator.service openstack-swift-container-sync.service openstack-swift-container-updater.service openstack-swift-container.service openstack-swift-object-auditor.service openstack-swift-object-replicator.service openstack-swift-object-updater.service openstack-swift-object.service

[root@swift-storage swift]#



swift的操作

基本操作

...

删除过期对象

...

权限设置

...

监测

[root@controller swift(admin)]# swift-recon -d

===============================================================================

--> Starting reconnaissance on 2 hosts (object)

===============================================================================

[2018-06-08 15:41:54] Checking disk usage now

Distribution Graph:

  1%    4 *********************************************************************

Disk usage: space used: 135503872 of 8547991552

Disk usage: space free: 8412487680 of 8547991552

Disk usage: lowest: 1.58%, highest: 1.59%, avg: 1.58521298454%

===============================================================================

[root@controller ~(admin)]#
